The control unit in a field housing for continuous level sensors
Standalone transducer with 5 relay outputs
With the UM-X level transducer in a field housing, we offer a convenient, stand-alone display for your level measurement. It has five relay outputs, all of which have freely configurable switching thresholds. The compact design and the possibility of connect directly to 230 V makes it easy to handle and install even outside a control cabinet.
Applications

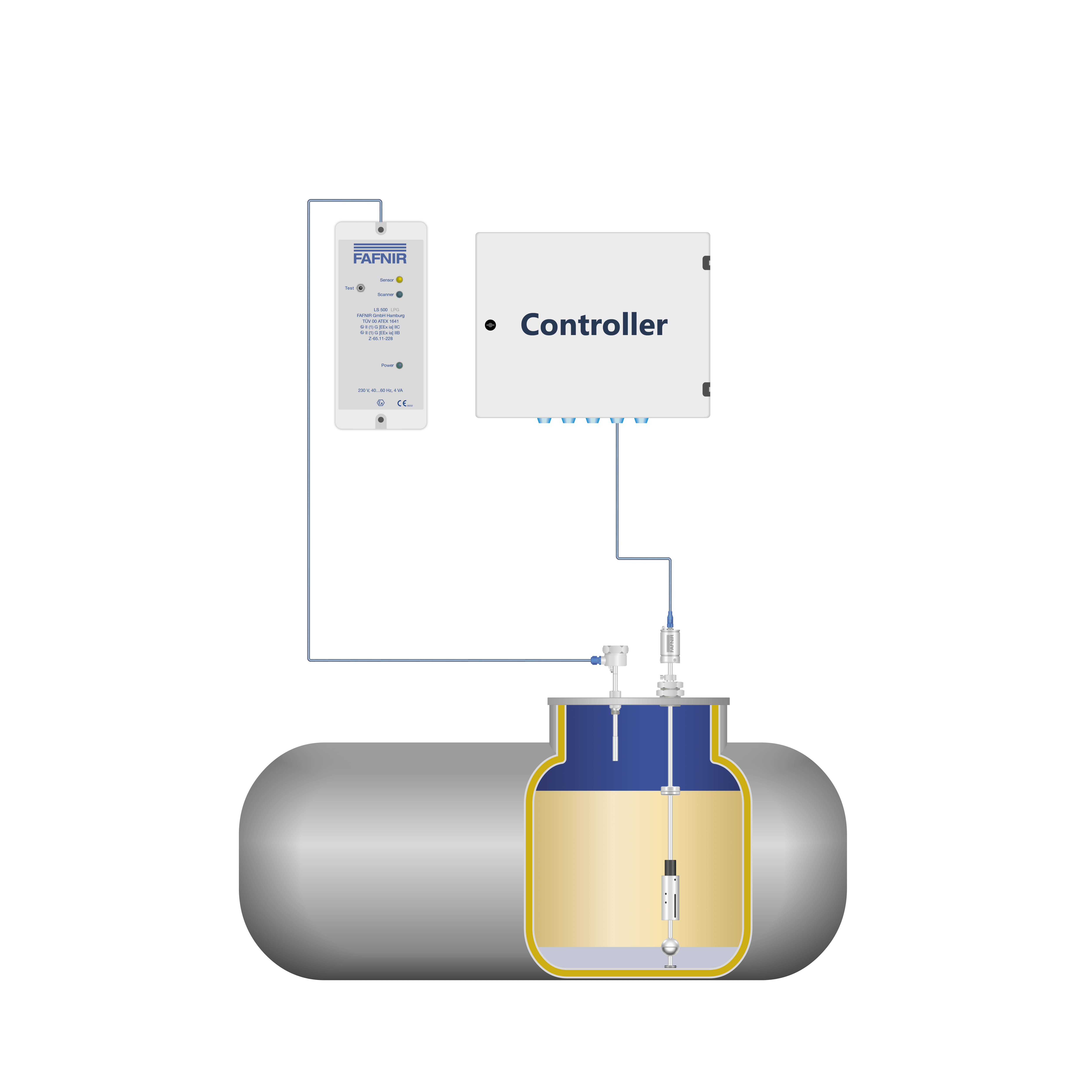

Tank Storage Horizontal Tank

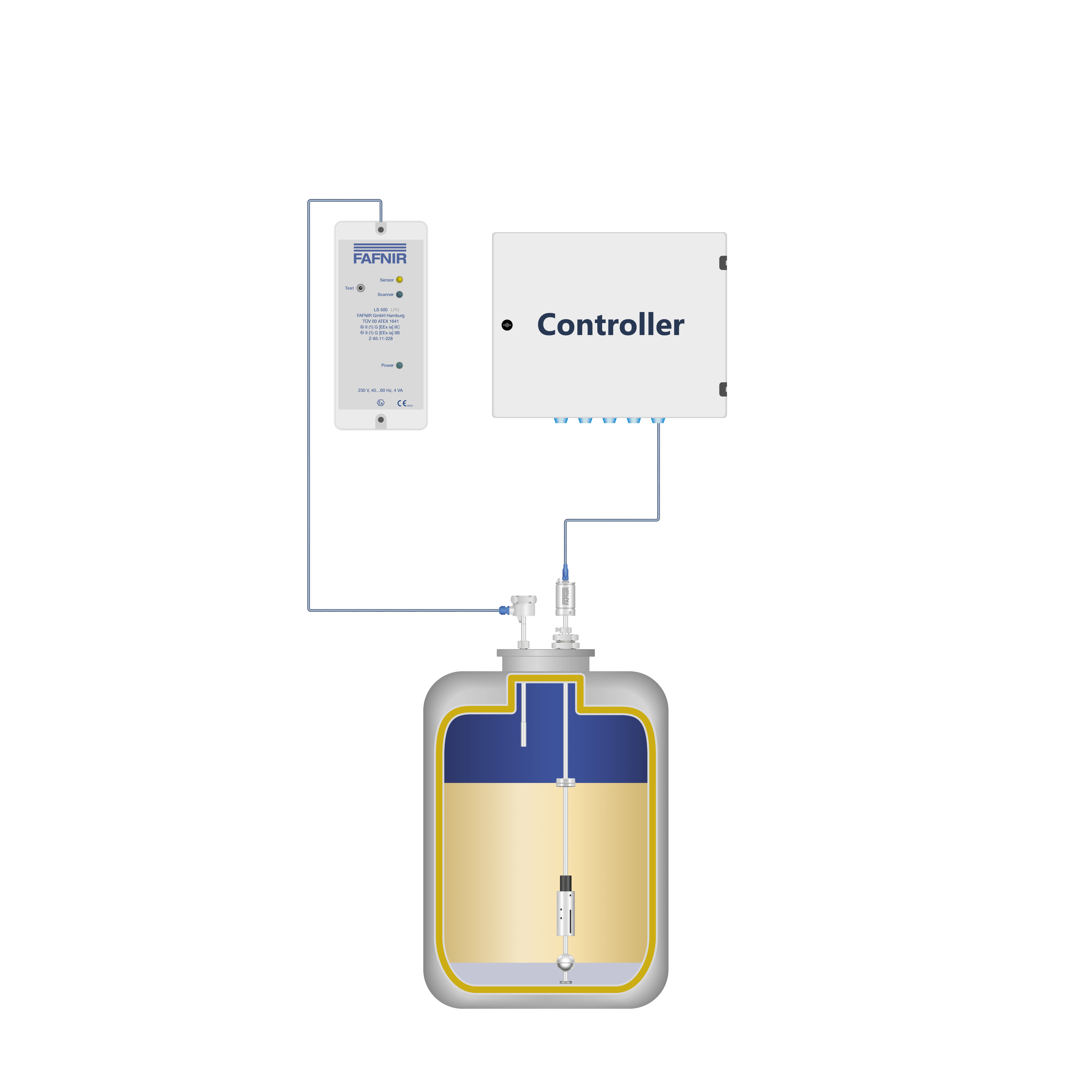

Tank Storage Vertical Tank

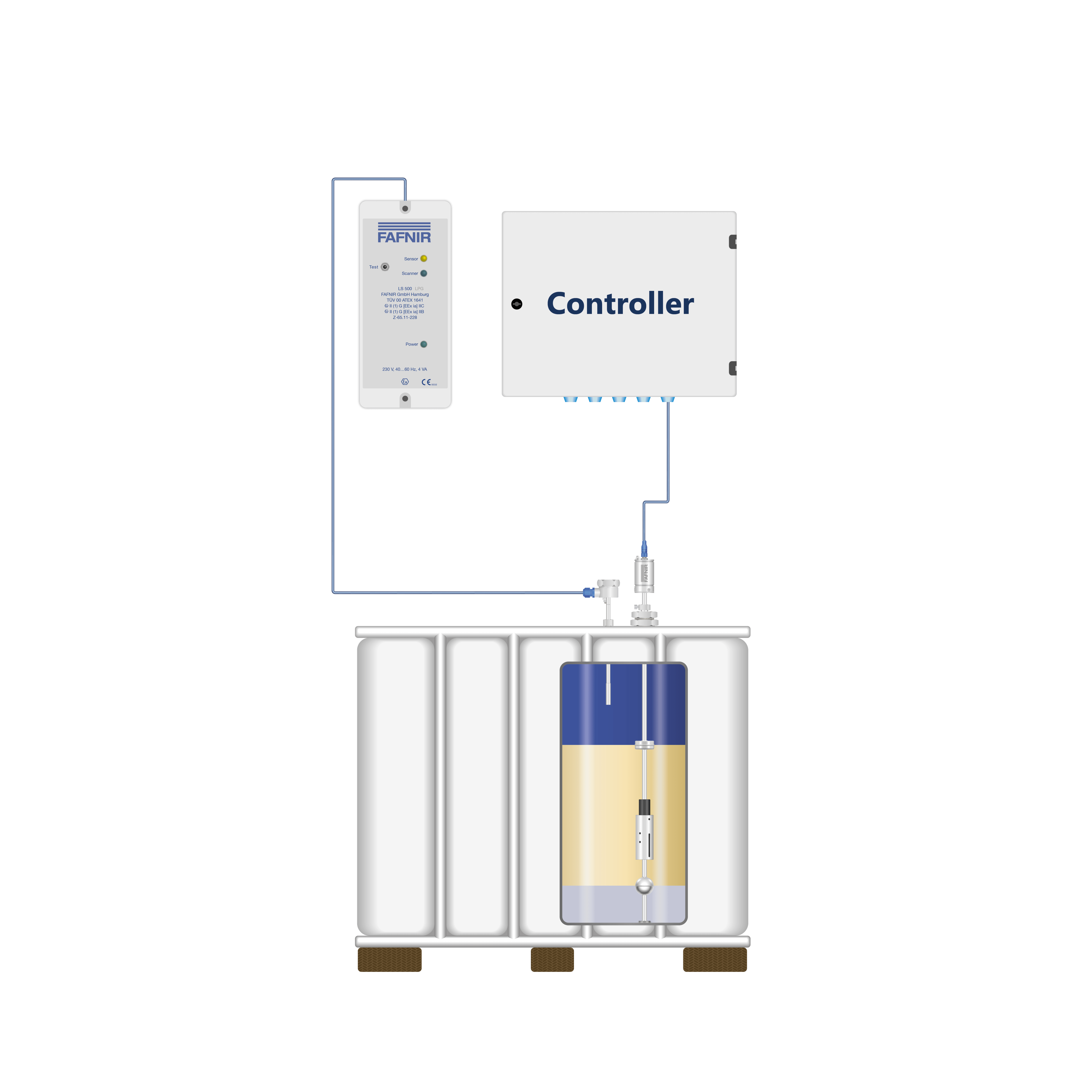

Tank Storage Container Tank

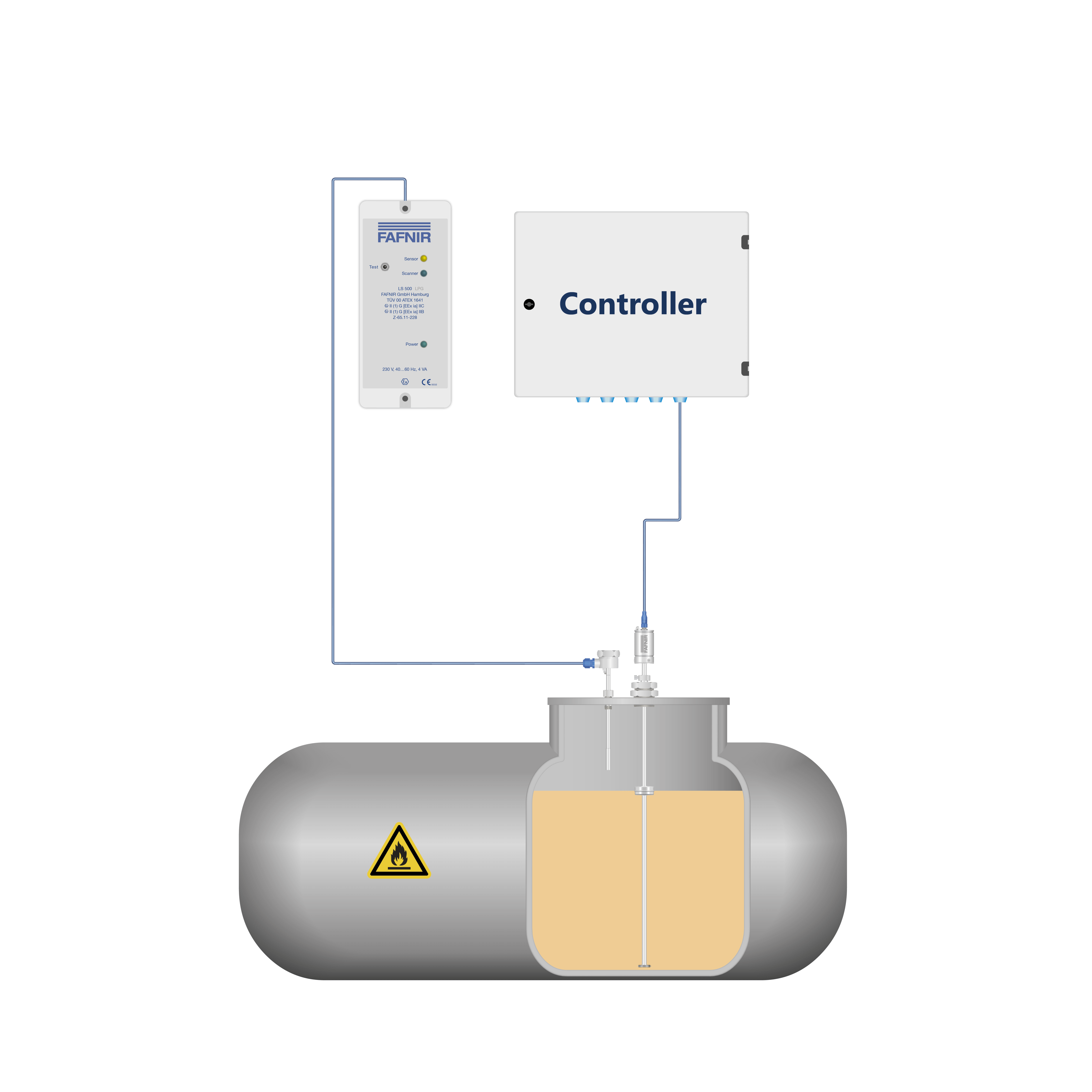

Solvent Storage Horizontal Tank

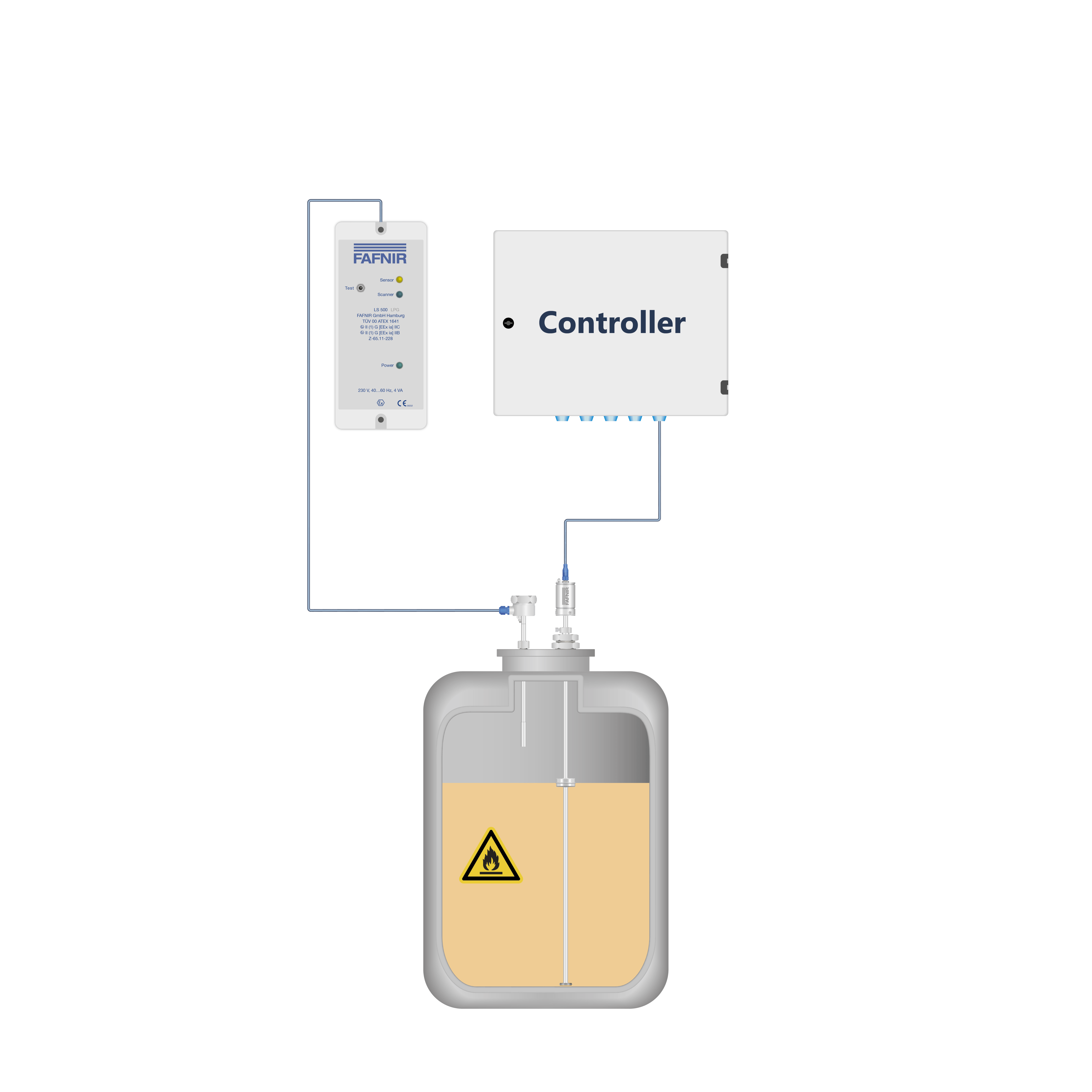

Solvent Storage Vertical Tank

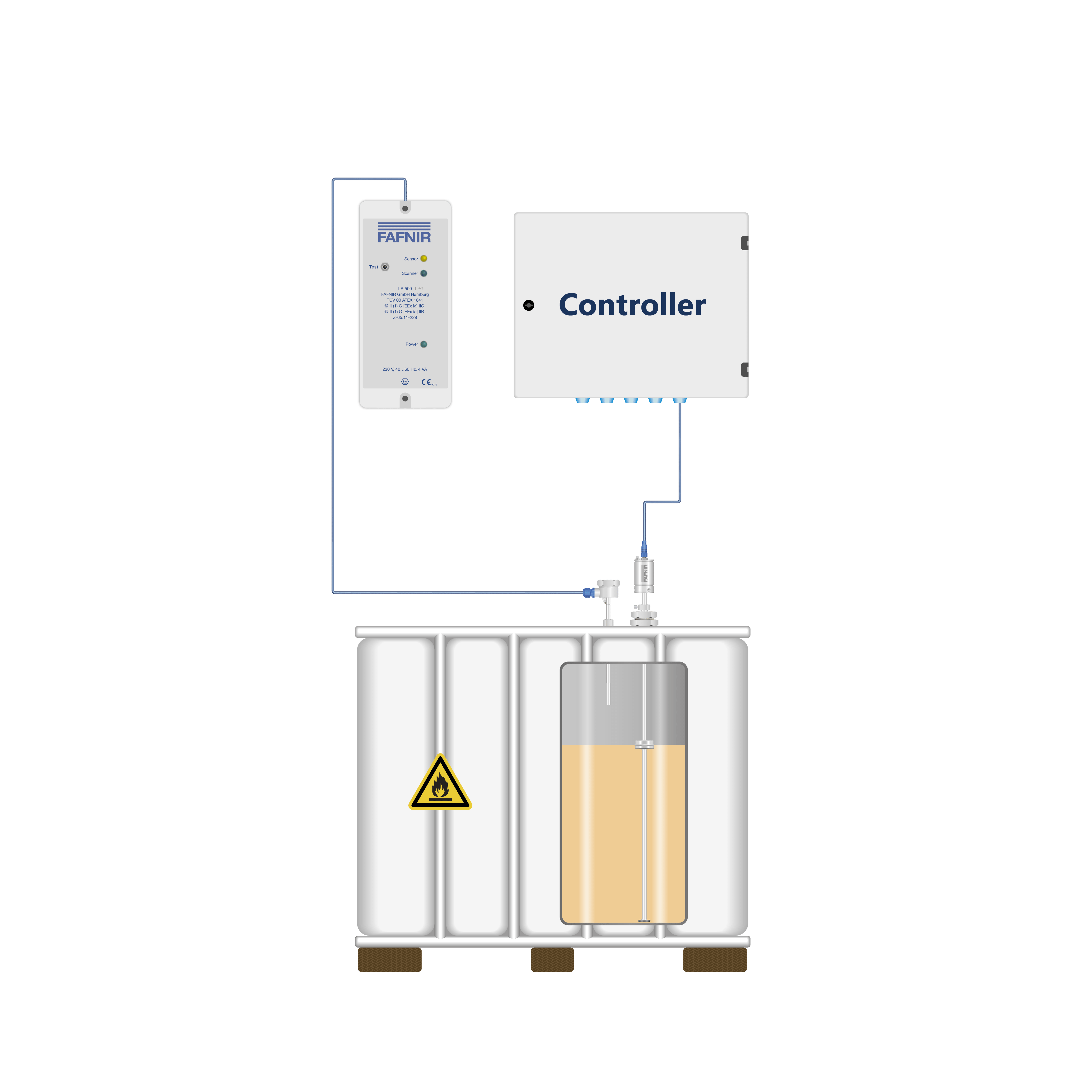

Solvent Storage Container Tank

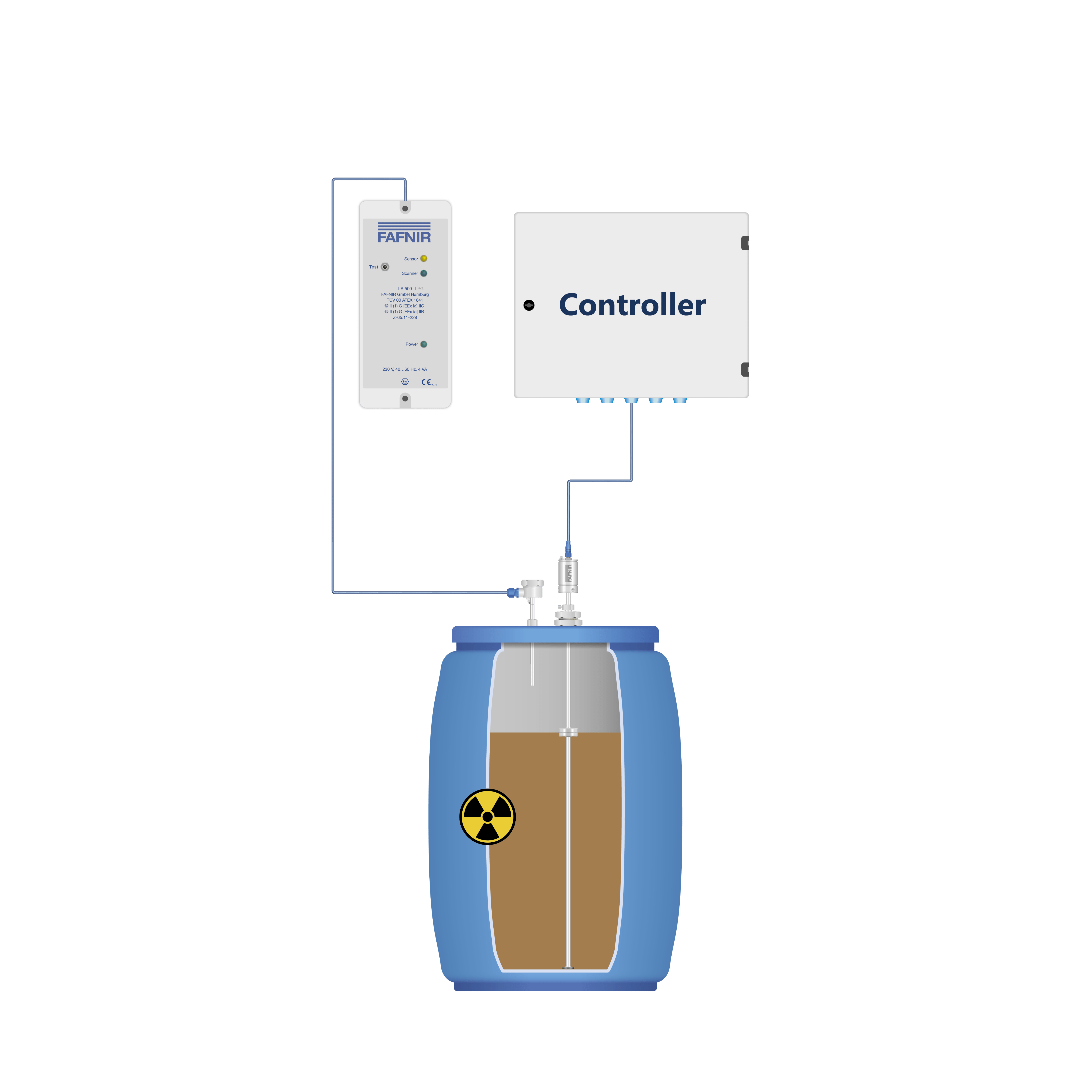

Waste Container Barrel Tank

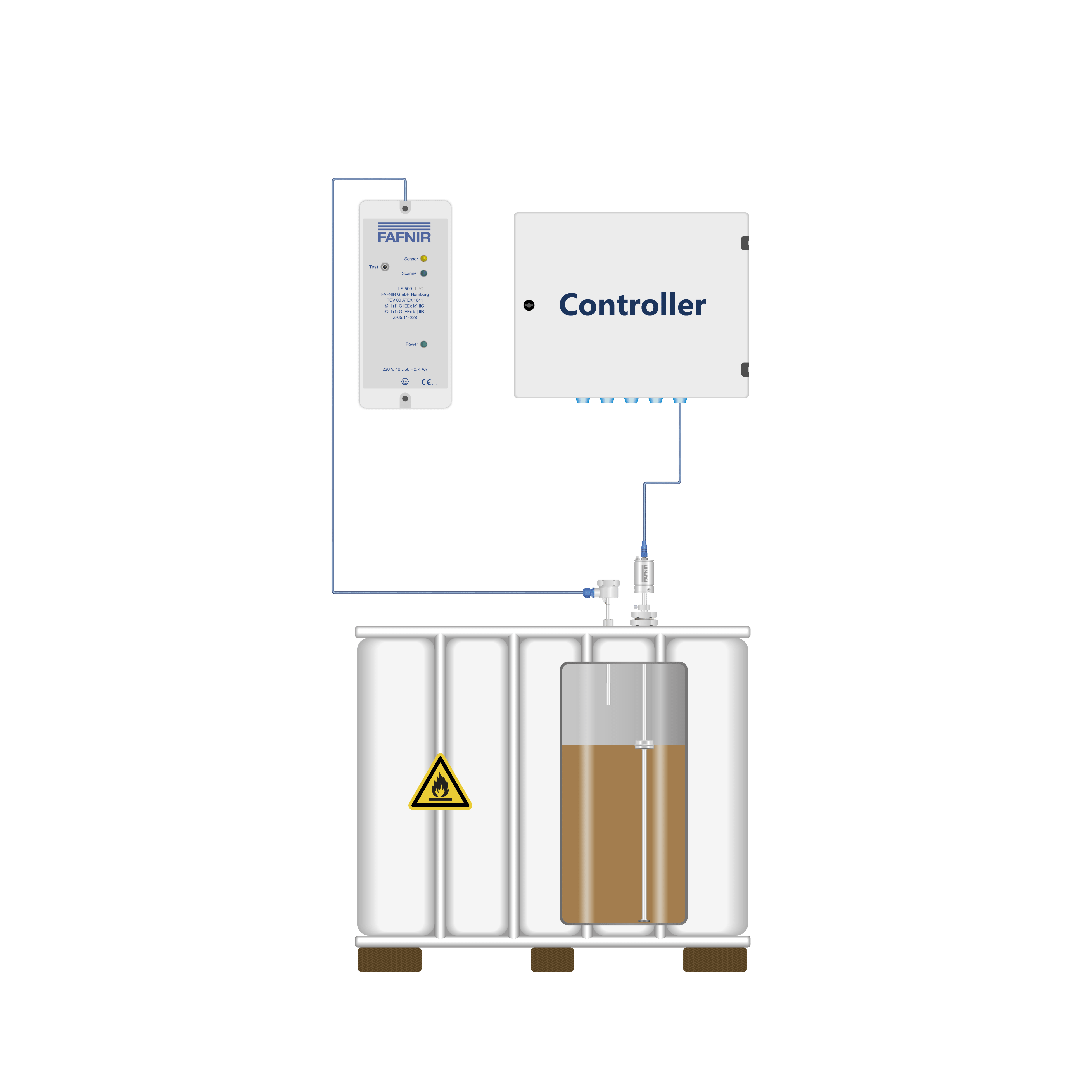

Waste Containers Container Tank

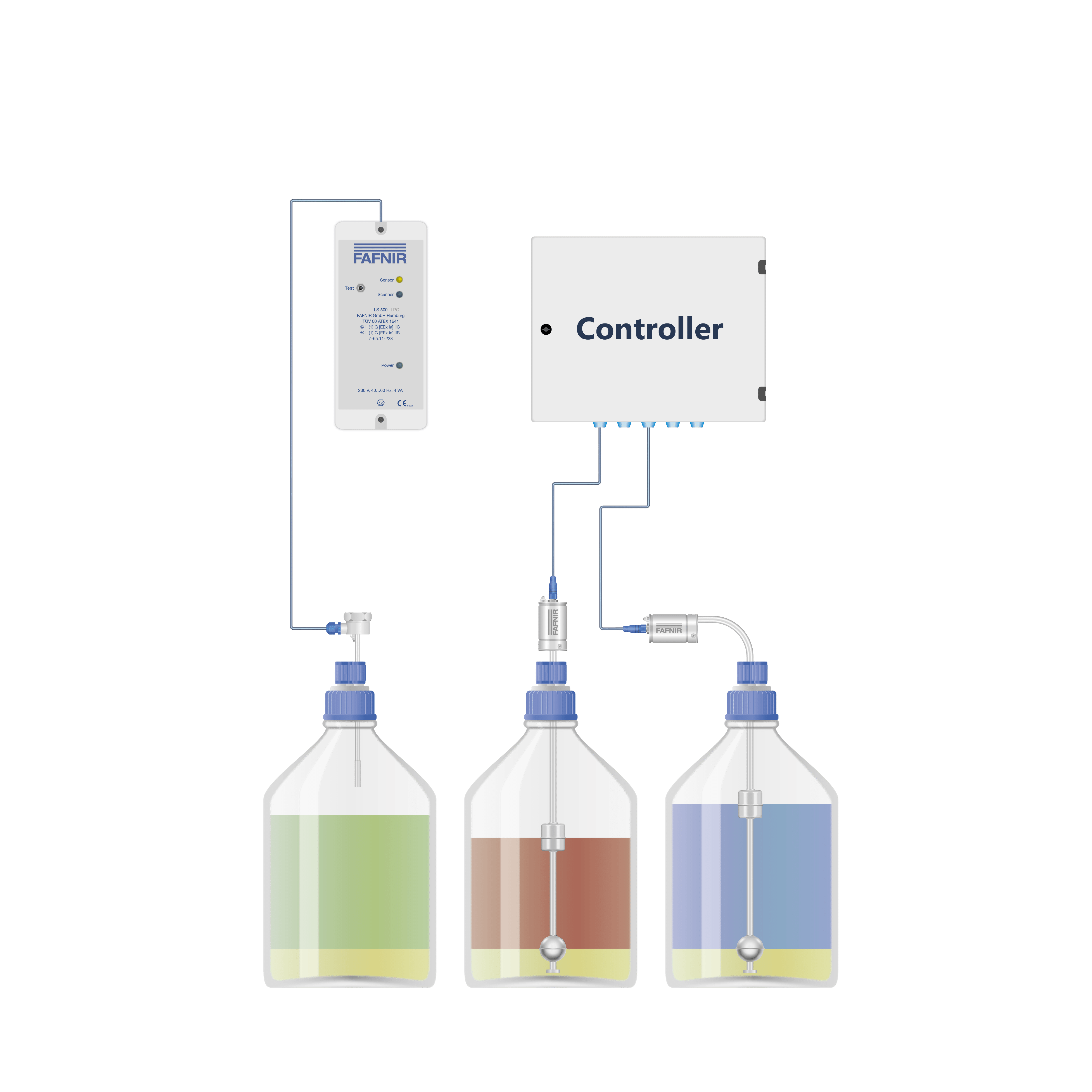

HPLC
Bypass Horizontal Tank
Bypass Vertical Tank
Interphase Horizontal Tank

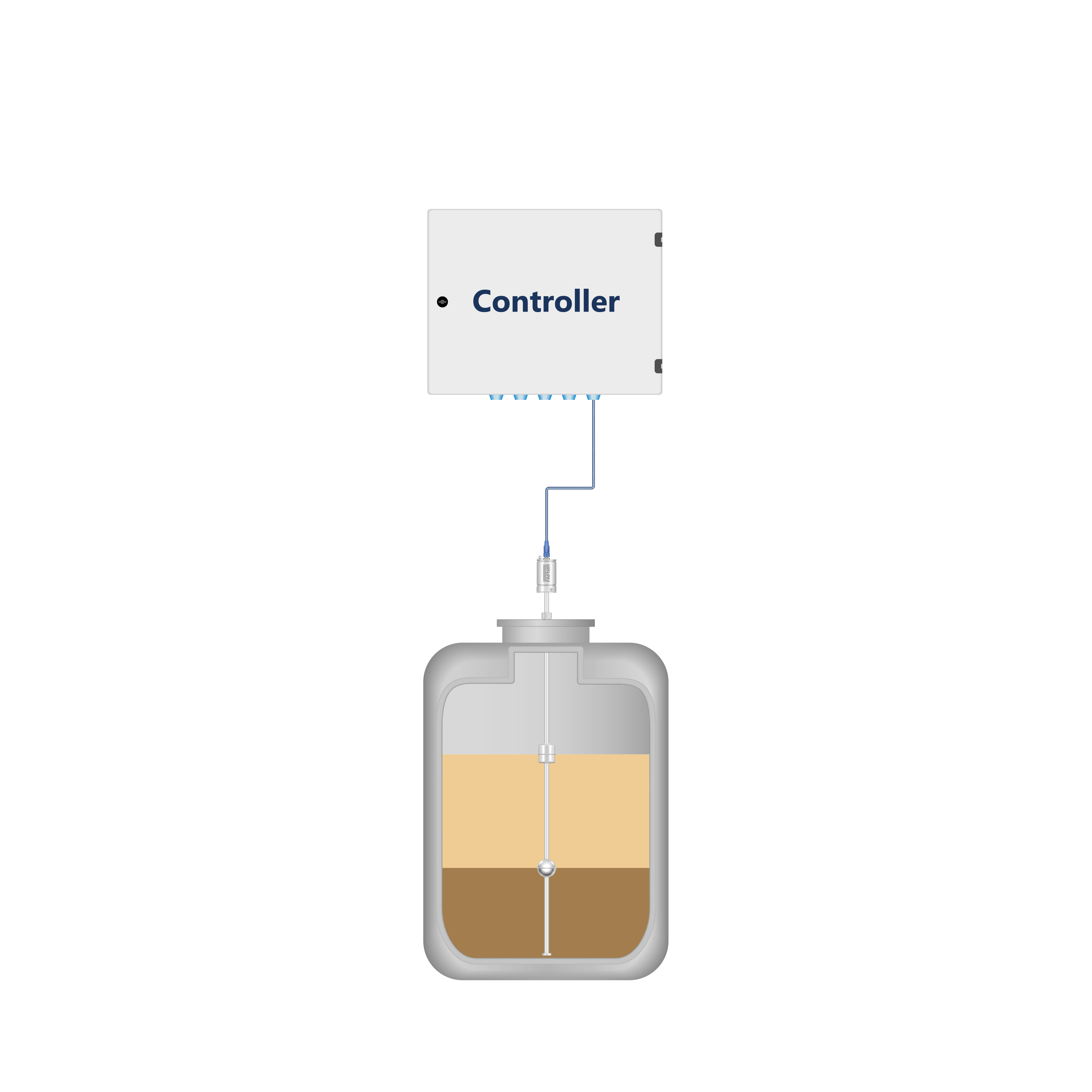

Interphase Vertical Tank

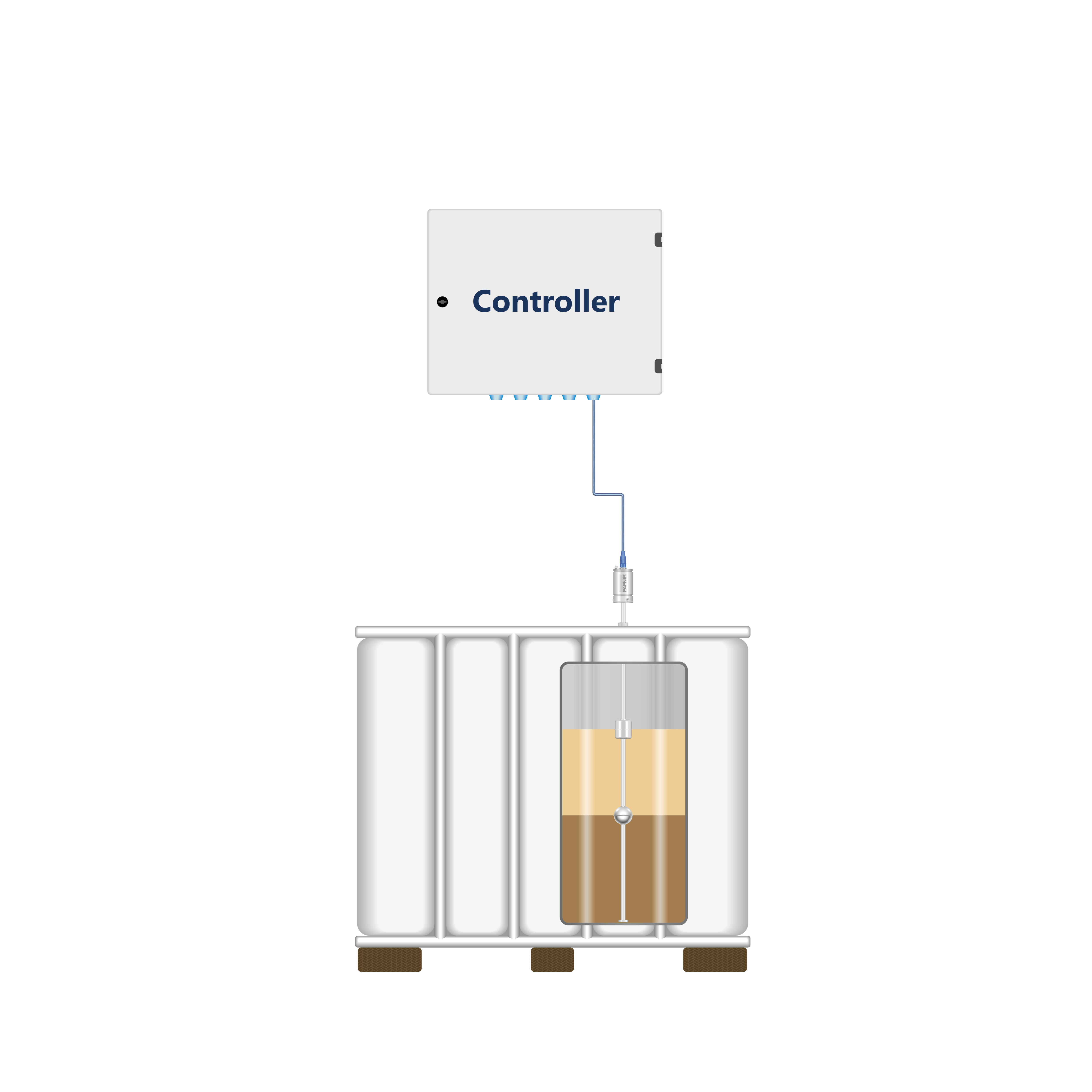

Interphase Container Tank

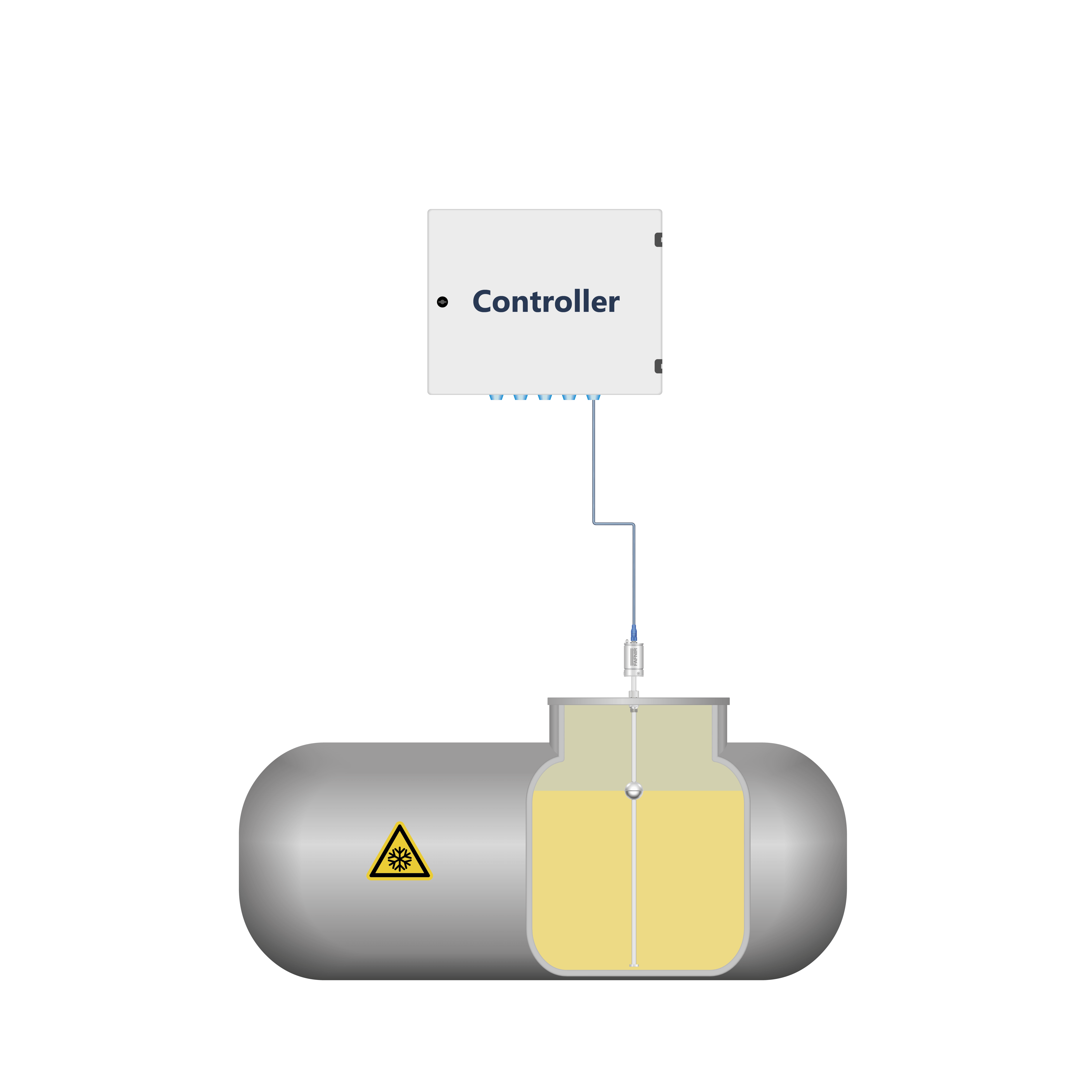

LNG Gas Horizontal Tank

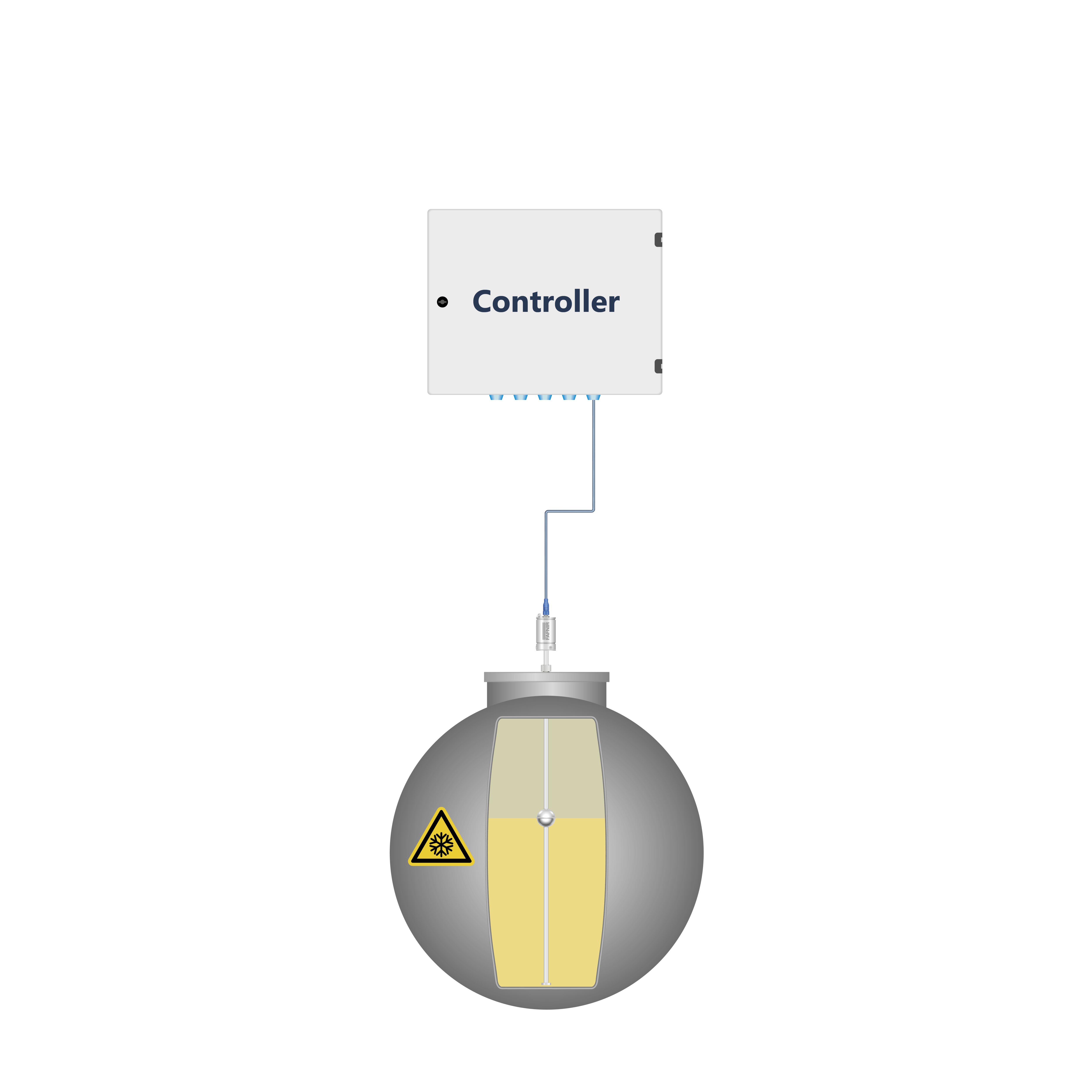

LNG Gas Circular Tank

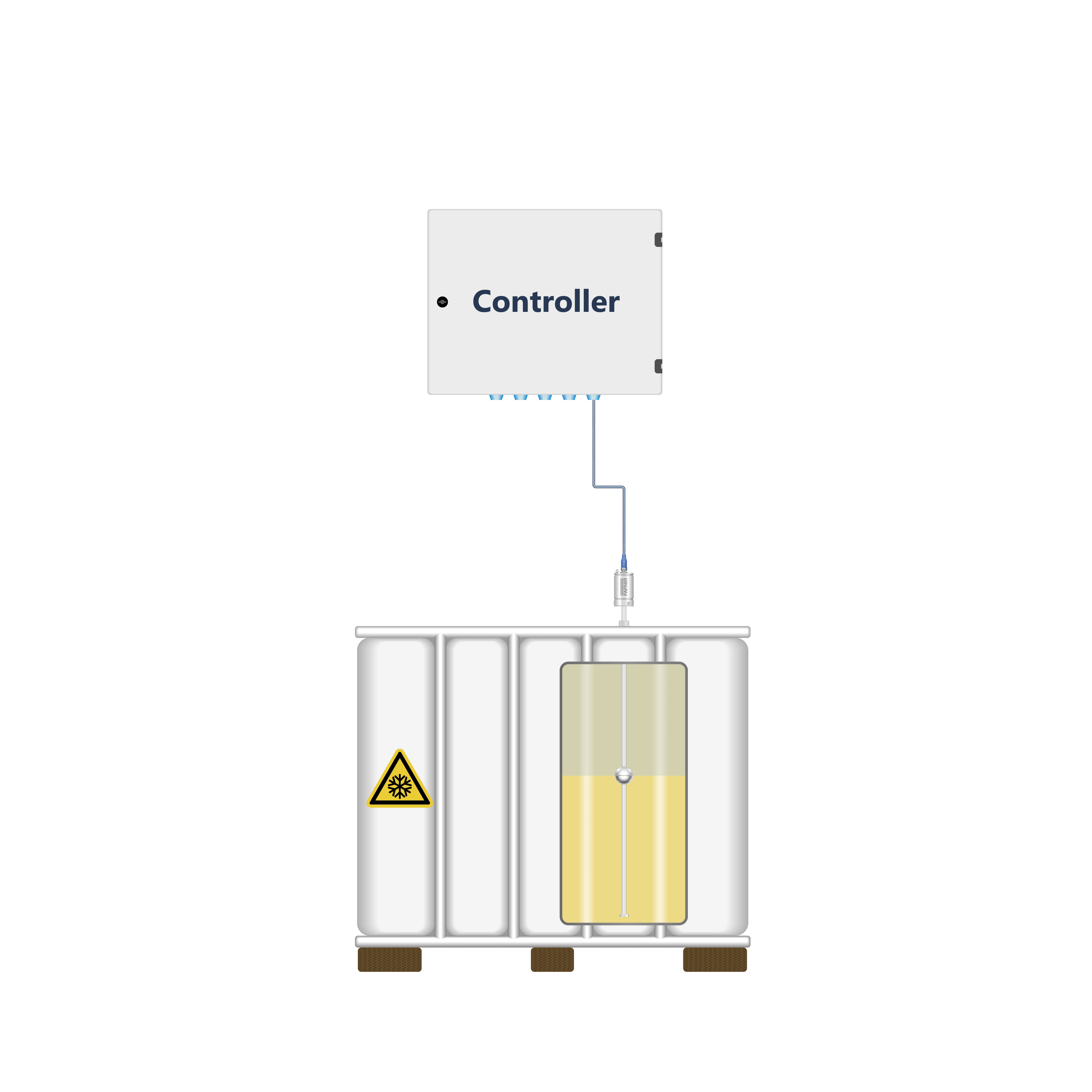

LNG Gas Container Tank
Main Features and Benefits
- The control unit in a field housing for continuous level sensors
- Easy menu-driven graphical user interface
- Can be used with all sensors with a 4-20 mA interface
- Intrinsically safe electrical circuit with ATEX approval (Ex ia)
- Combined with TORRIX, approved as an overfill prevention fulfilling the German Water Resources Act (WHG)
- Pump control (alternating)
- Continuous displaying the filling level
- Filling levels can be displayed in mm, inches, % or mA
Application Examples
Storage Tanks and Storage Containers
TORRIX is ideally suited for measuring in all non-adhesive liquids and almost all tank geometries. There is no need to adjust the sensor to the liquid or the shape of the tank. Another advantage is that there are no dead zones in the upper and lower areas. The starting point of the measurement is only defined by the size of the float; therefore the entire volume can be measured and used.
Interface layer measurements where emulsions are present
When used with HART ® protocol, TORRIX can measure both the interface level and the overall level of a tank. Unlike sensors that operate on the guided microwave principle, the interface layer can be easily recognized even when emulsion is present.
Pilot plant and prototype systems
The TORRIX 6 with his probe diameter of 6 mm and float diameter of 27 mm is ideal for applications in smaller containers. Unlike most sensors, TORRIX measures in the upper and lower region with no dead zone with the threshold point defined only by the float. The TORRIX is ideal in applications where frequent changes of media are needed as it does not require adjustment.
System with toxic chemicals
The TORRIX can be welded gas tight with any flange and reduce the potential for leaks in your system less. This allows TORRIX be used in processes with hazardous fluids such as ammonia.
Highly accurate measurement, ideal for dispensing volume
With an accuracy of up to 0.3 mm, TORRIX can be used for precise level measurement allowing leak detection in small storage tanks.
In combination with a metering valve, the liquid level measurement feature can also be used to fill a well-defined volume in a process tank. Depending on the geometry of the tank, the accuracy with a filling volume of 100 ml is as low as 2%.
Such is the accuracy of TORRIX, it can also be used in a calibration rig to check the accuracy of other level sensors.
Bypass applications with magnetic level indicator
In magnetic level indicator applications, the magnetic indicators are actuated by the magnetic field of a float in the interior of the bypass. The magnetic field of this float can also be measured by a TORRIX which is mounted on the exterior of the bypass. The TORRIX can therefore measure the level without media contact and without additional intervention in the process tank. Many magnetic level gauges can be retrofitted with a TORRIX.
LPG and other pressurized tanks
With the LPG BUNA float installation kit, TORRIX can also measure the contents of an LPG tank. The sensor is not fitted to the pressurised space (zone) in the tank which means that the fitment of a sensor is possible without opening the tank. Level measurement by TORRIX is performed independently from the manufacturer installed sensor. The principle of the installation kit is not only suitable for LPG, but for all pressurised tanks
Downloads
Contact Information
Sales Engineer
Kevin Biehl
Phone: +49/40/39 82 07 - 83
Fax: +49/40/390 63 - 39
E-Mail: kevin.biehl@fafnir.de
Customer and Technical Support
Michael Stier
Phone: +49/40/39 82 07 - 14
Fax: +49/40/390 63 - 39
E-Mail: michael.stier@fafnir.de
Specifications
| Equipment Type | Display |
|---|---|
| Liquid | Acids, Chemicals, Cryogenic Liquids, Fuel, Solvents, Wastewater, Water |
| Vessel | Bulk Tank, Bypass, Intermediate Bulk Container (IBC), Laboratory Bottle, Ship, Underground Storage Tank, Waste Container |
| Measuring range | 0.00 mm up to 25 000.00 mm |
| Process Connection | None |
| Temperature | -20.00 °C up to 50.00 °C |
| Certification | ATEX, None, WHG |
| Signal output | Relay |
| Power Supply | 115 VAC, 230 VAC, 24 VAC, 24 VDC |
| Additional criteria | Dry run protection |
