THE ALL-ROUNDER FOR LEVEL MEASUREMENTS
TORRIX XTS is the most advanced probe in the TORRIX family and offers pure level measurement of the product and interface layer and simultaneously measures the temperature and density of the liquid. The integrated LCD display can show up to 3 measurement values at a time along with graphical representation of the filling level continuously.

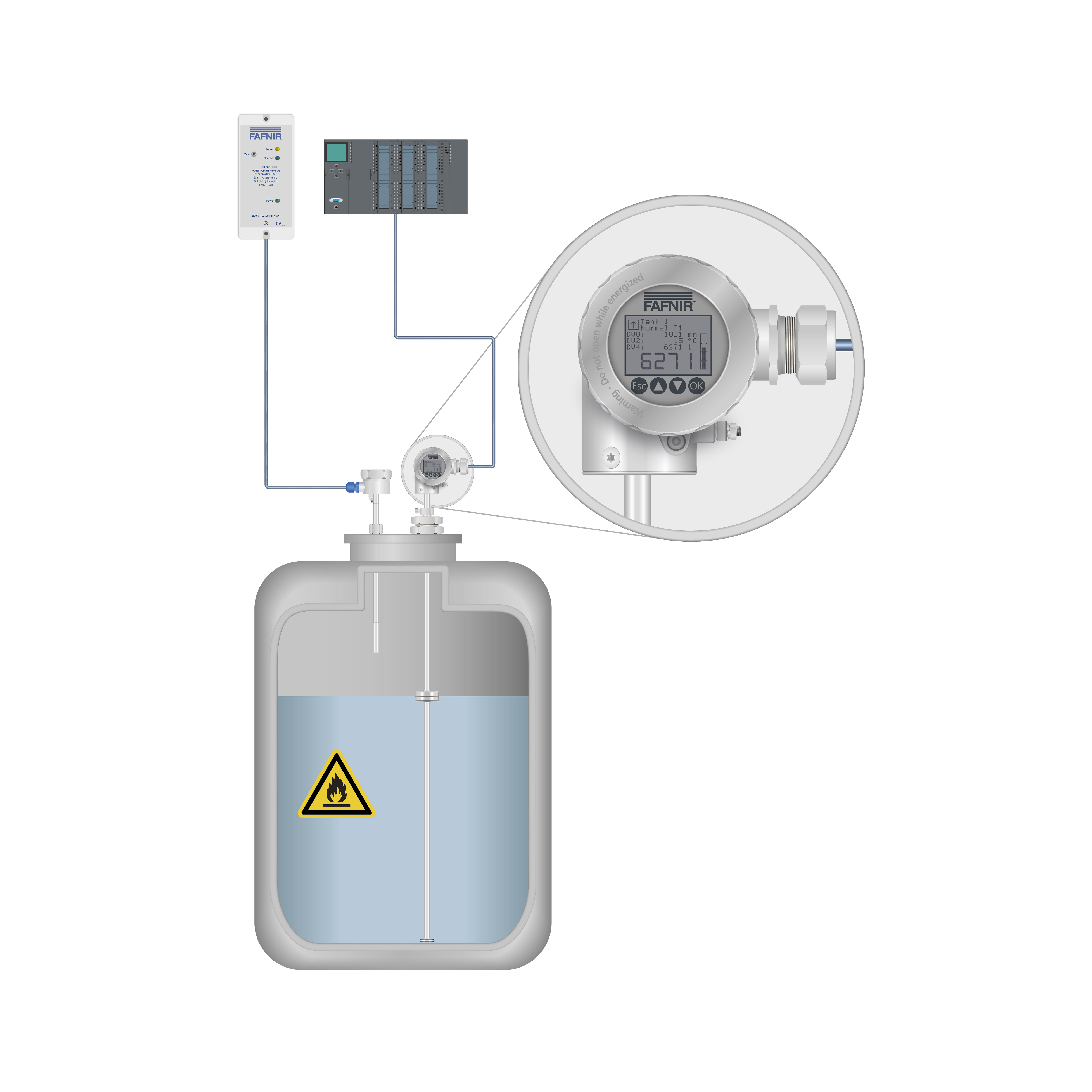

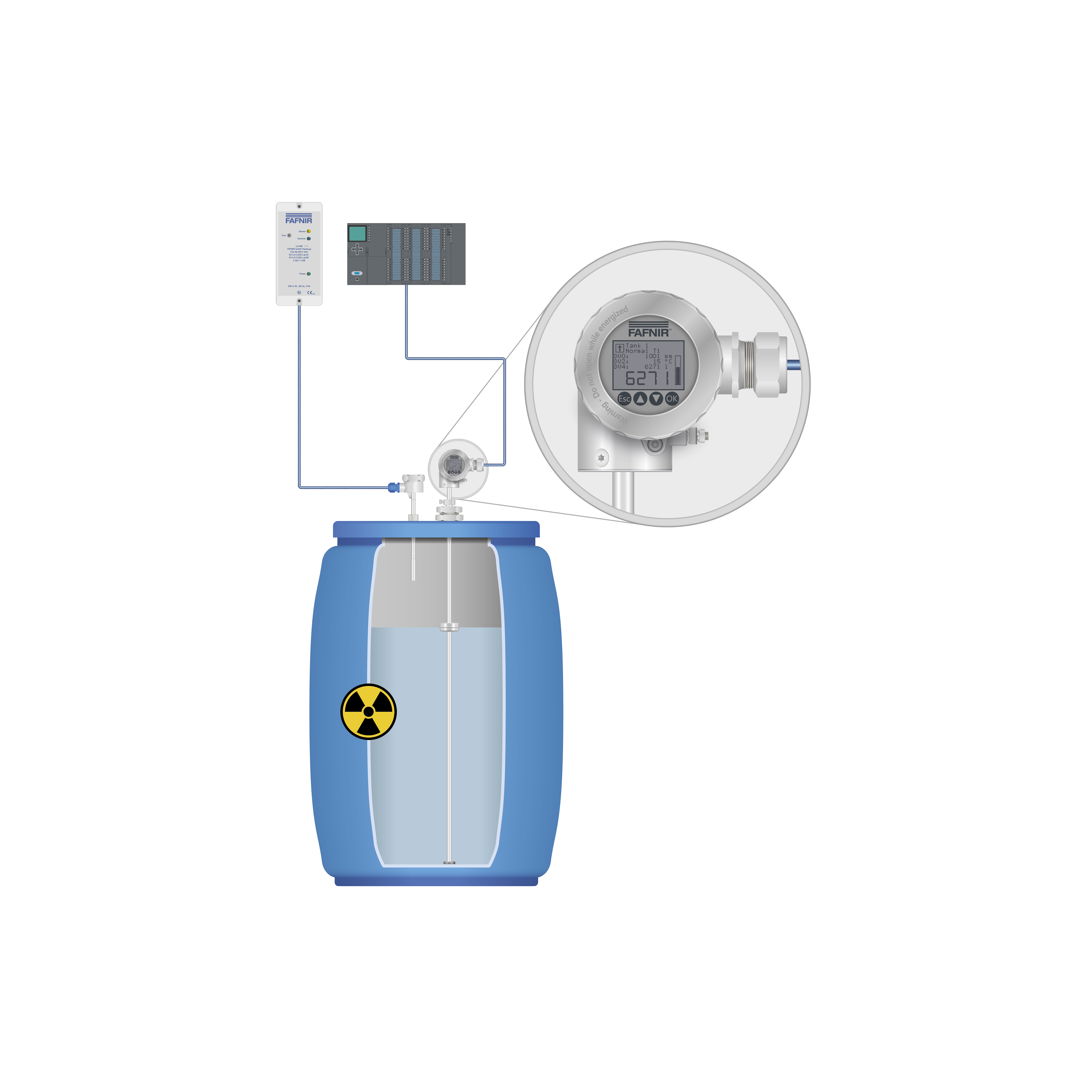

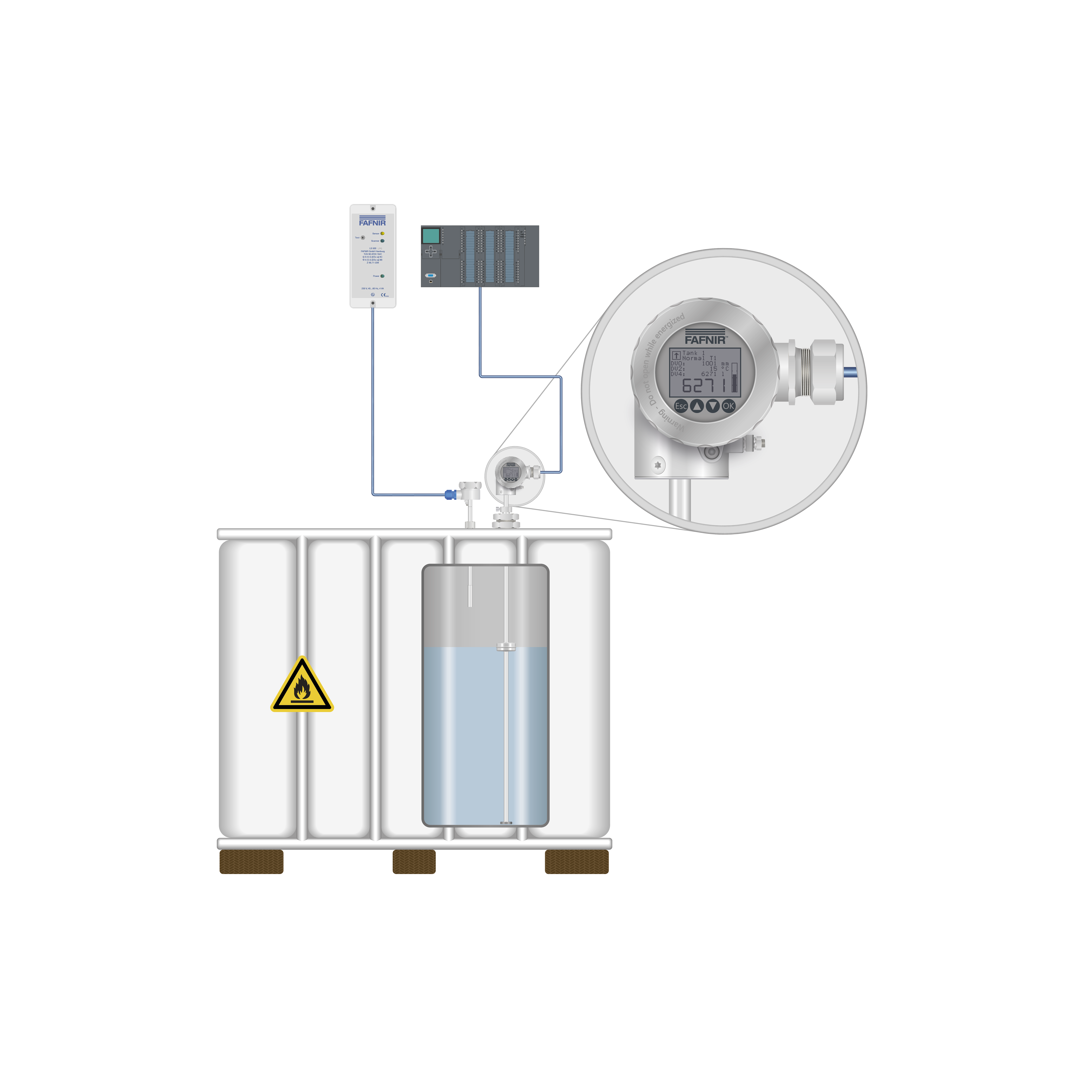

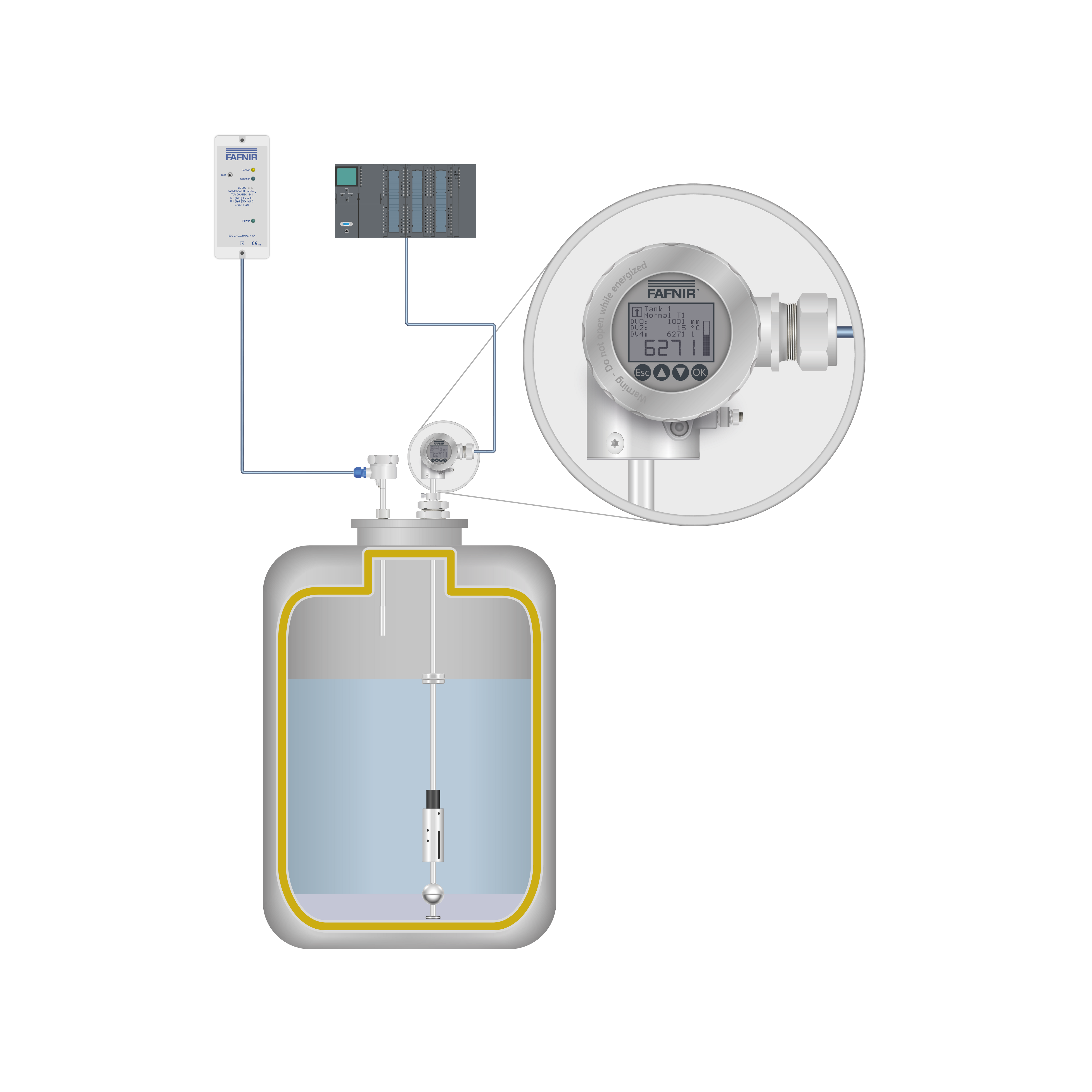

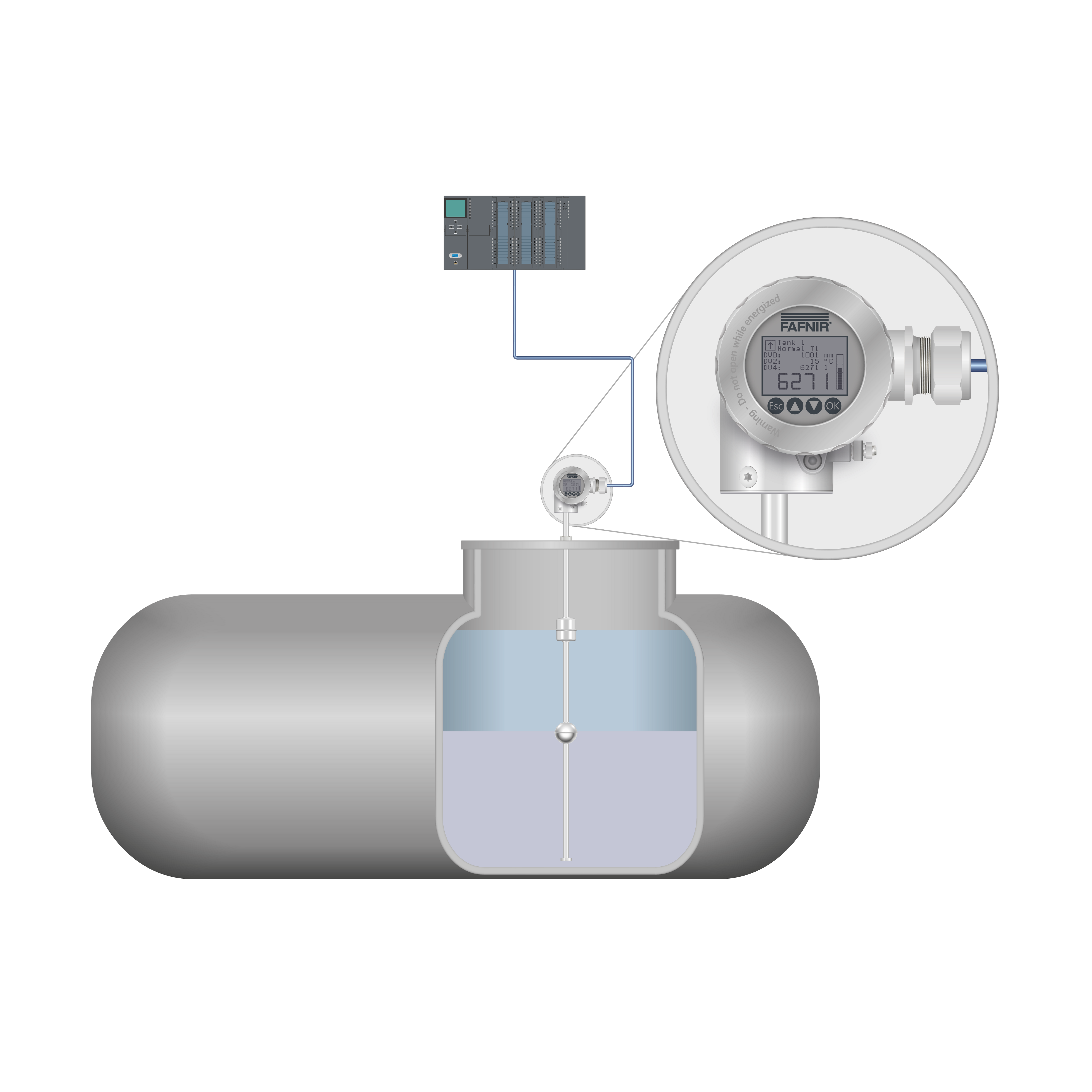

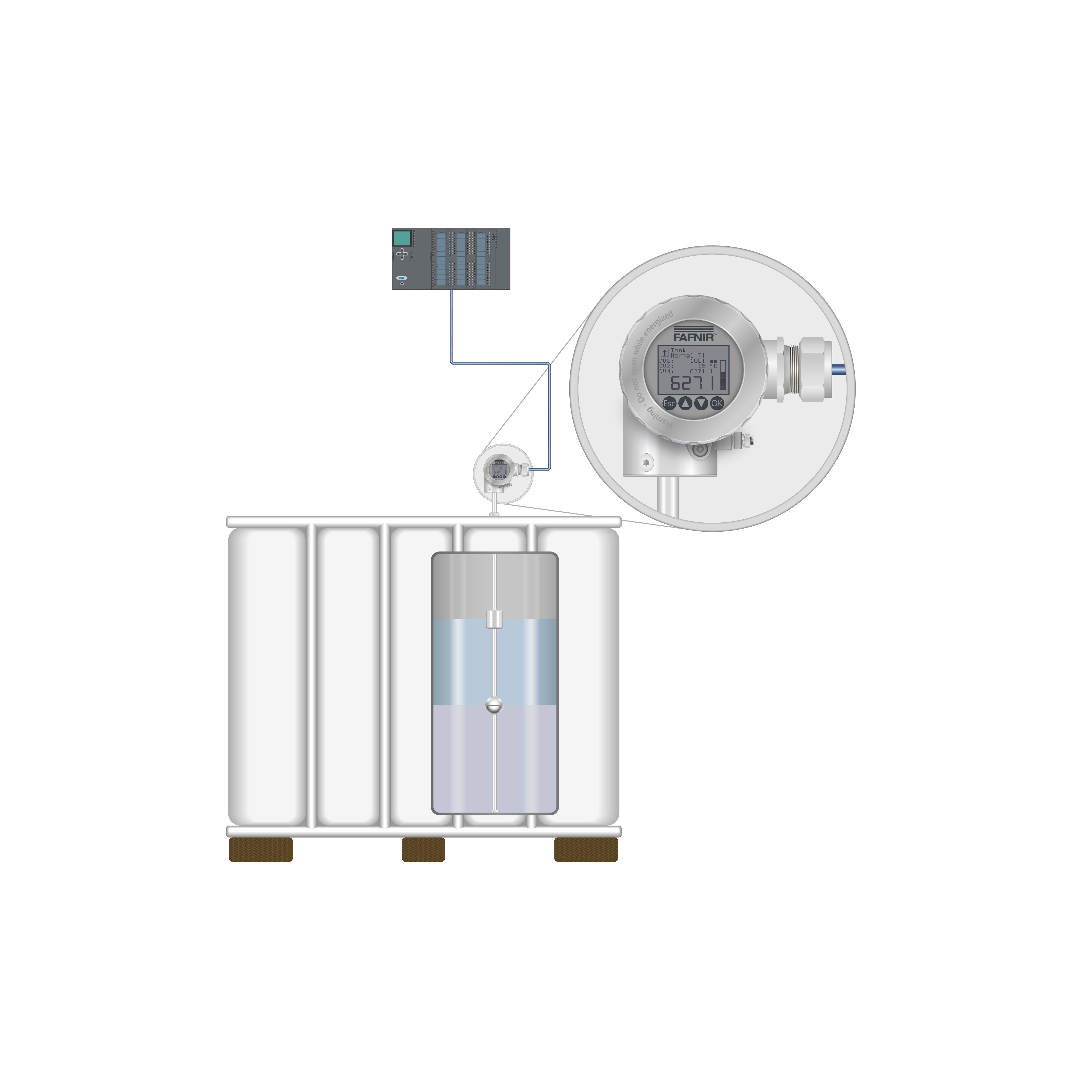

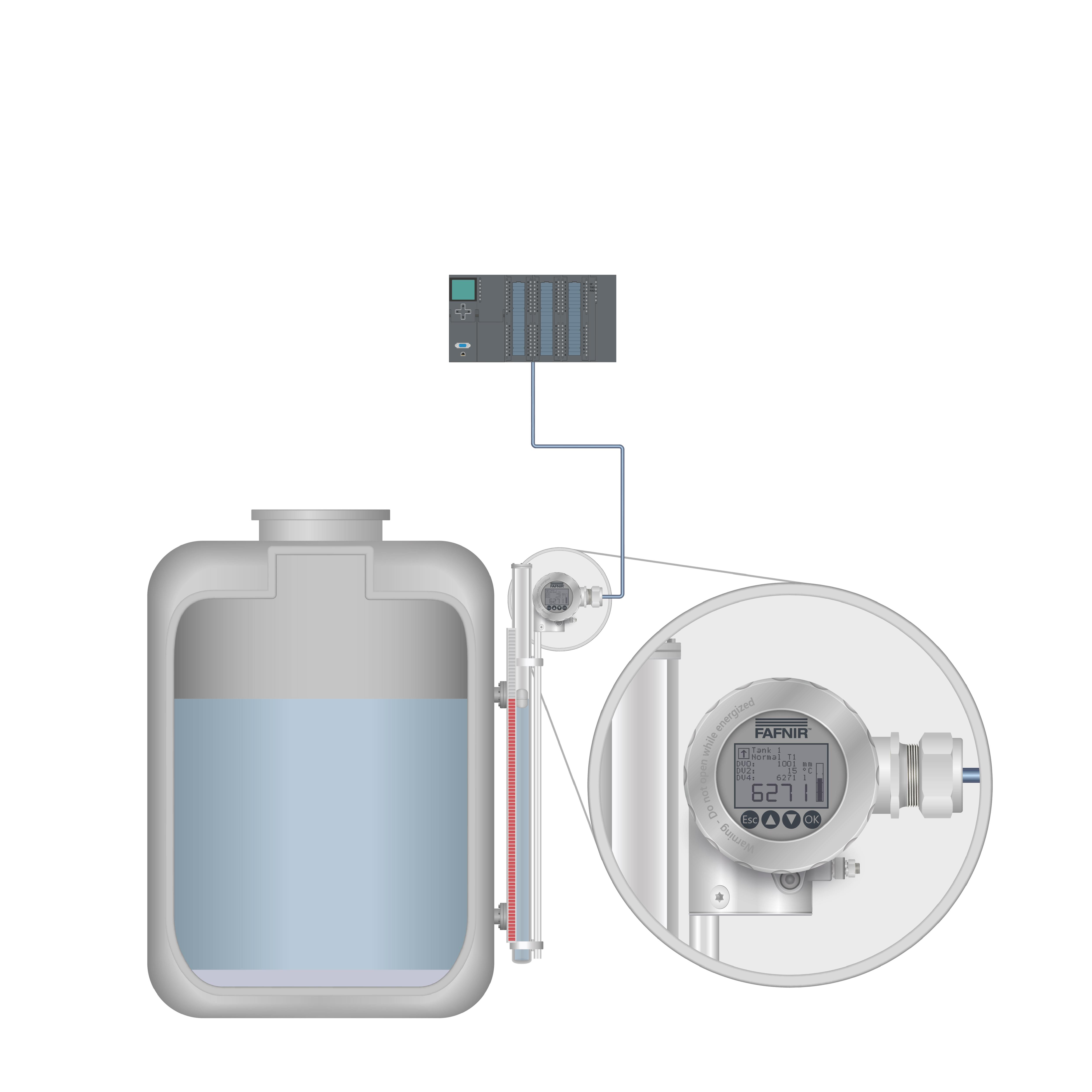

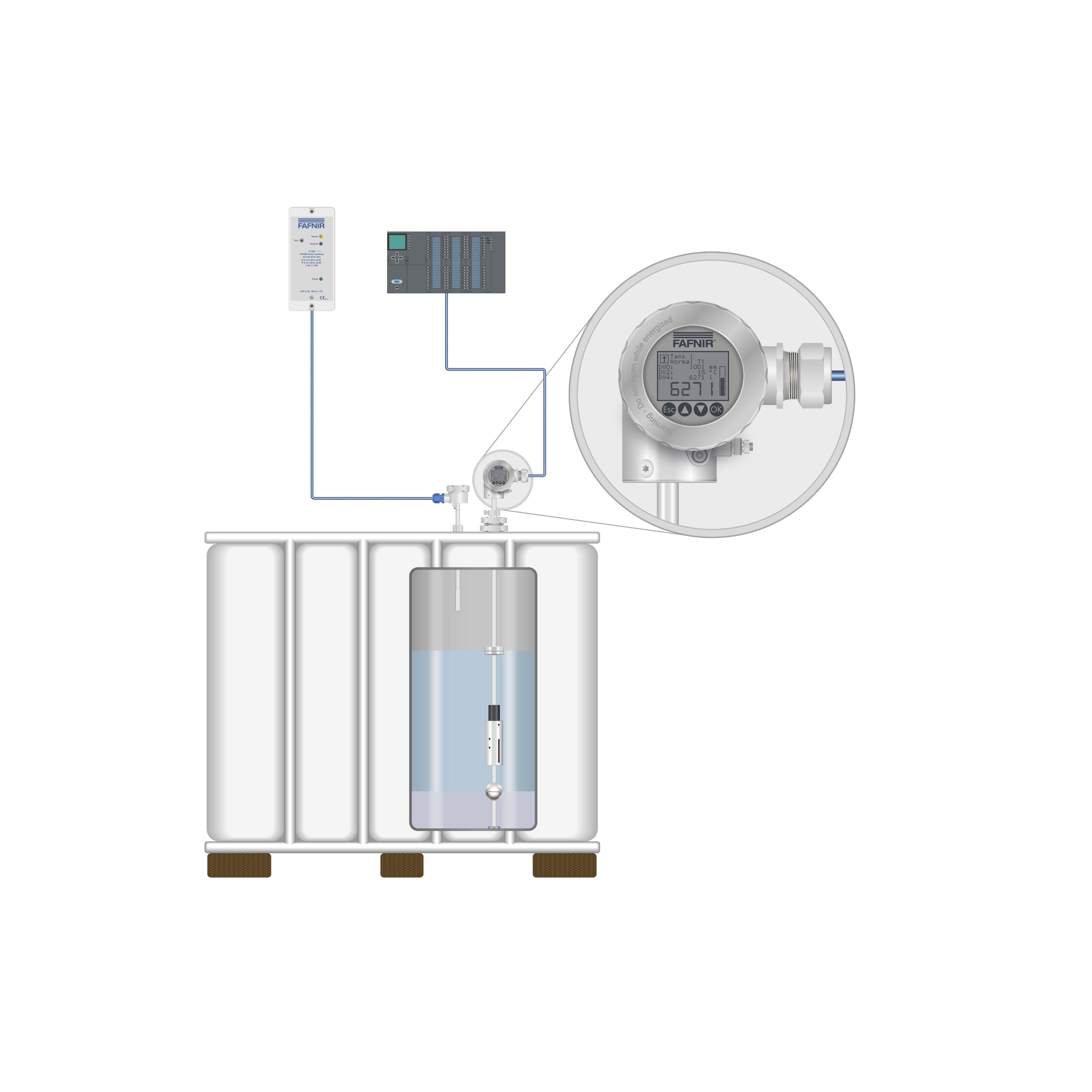

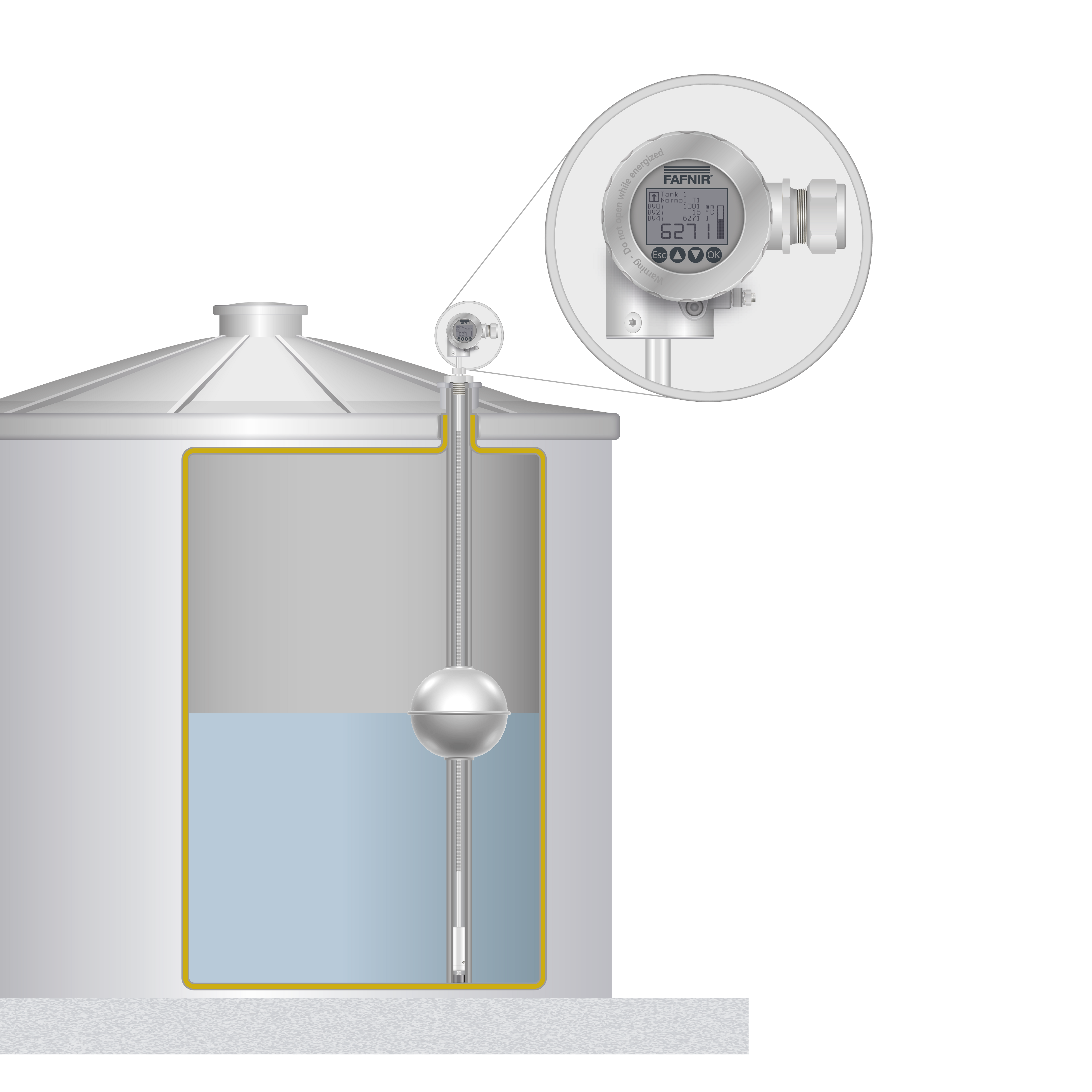

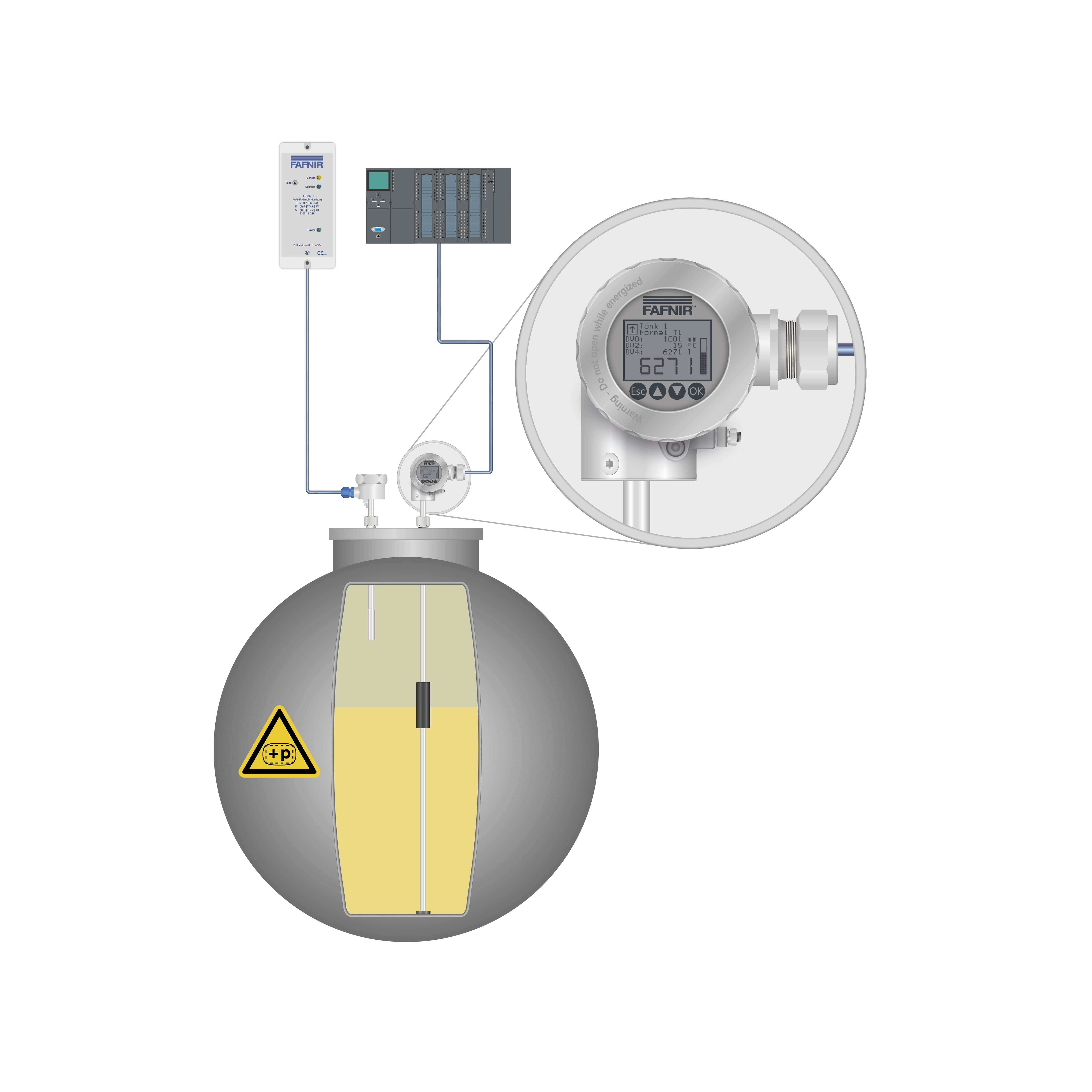

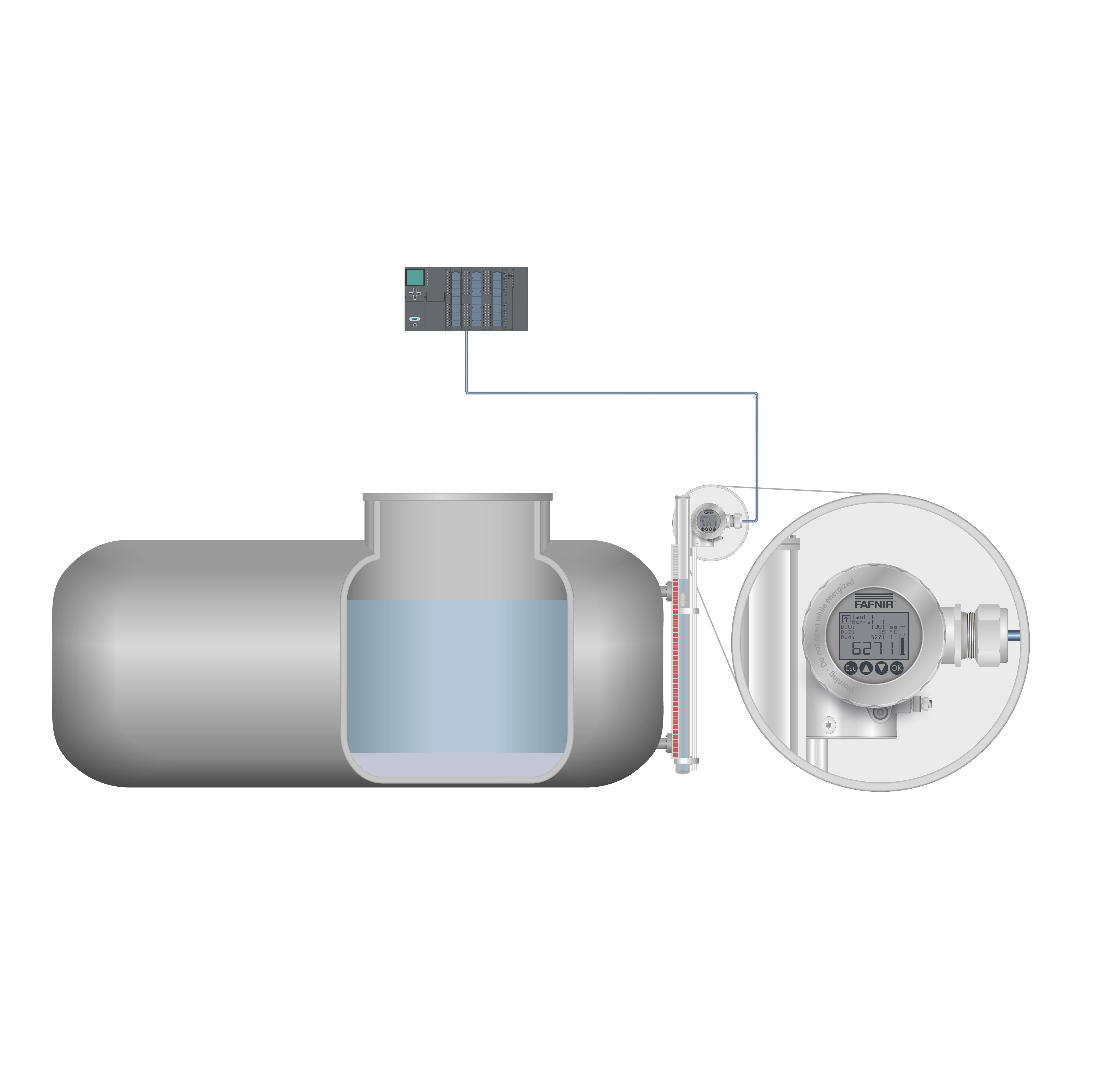

Applications
Main Features & Benefits
- 3 in 1 measurement: Product level, interphase and temperature
- Integrated LCD Display for on-spot data interpretation and quick decision making
- Protocol: 4-20 mA / HART
- Robust design and fully maintenance free
Specifications
| Equipment Type | Magnetostrictive Level Measurement |
|---|---|
| Liquid | Acids, Chemicals, Fuel, Solvents, Water |
| Vessel | Bulk Tank, Bypass, Intermediate Bulk Container (IBC), Road Tanker, Ship, Underground Storage Tank, Waste Container |
| Accuracy | up to ±0.3 mm or ±0.01 % |
| Probe lengths | 600 mm up to 22,000 mm |
| Temperature | up to +450 °C |
| Pressure | -1 bar to +120 bar |
| Certification | Ex-Zone 0 (ATEX, IECEx) |
| Signal output | 4 to 20 mA (2 wire)/HART®-protocol |
| Power Supply | Ex ia - 12 to 30 VDC Ex d - 12 to 50 VDC |
